Allen & Heath SQ+ Mixers
It’s SQ. Plus More
48 channel, 96kHz digital mixers for live sound, AV and installation.
SQ. Plus More. Everything that made SQ the standard in compact mixing – the 96kHz XCVI core, ultra-low latency, class-leading audio quality, RackExtra FX, and DEEP Processing – now with flagship-tier RackUltra FX, more power per channel, and a transformed interface.
Mixing Has Never Been Easier

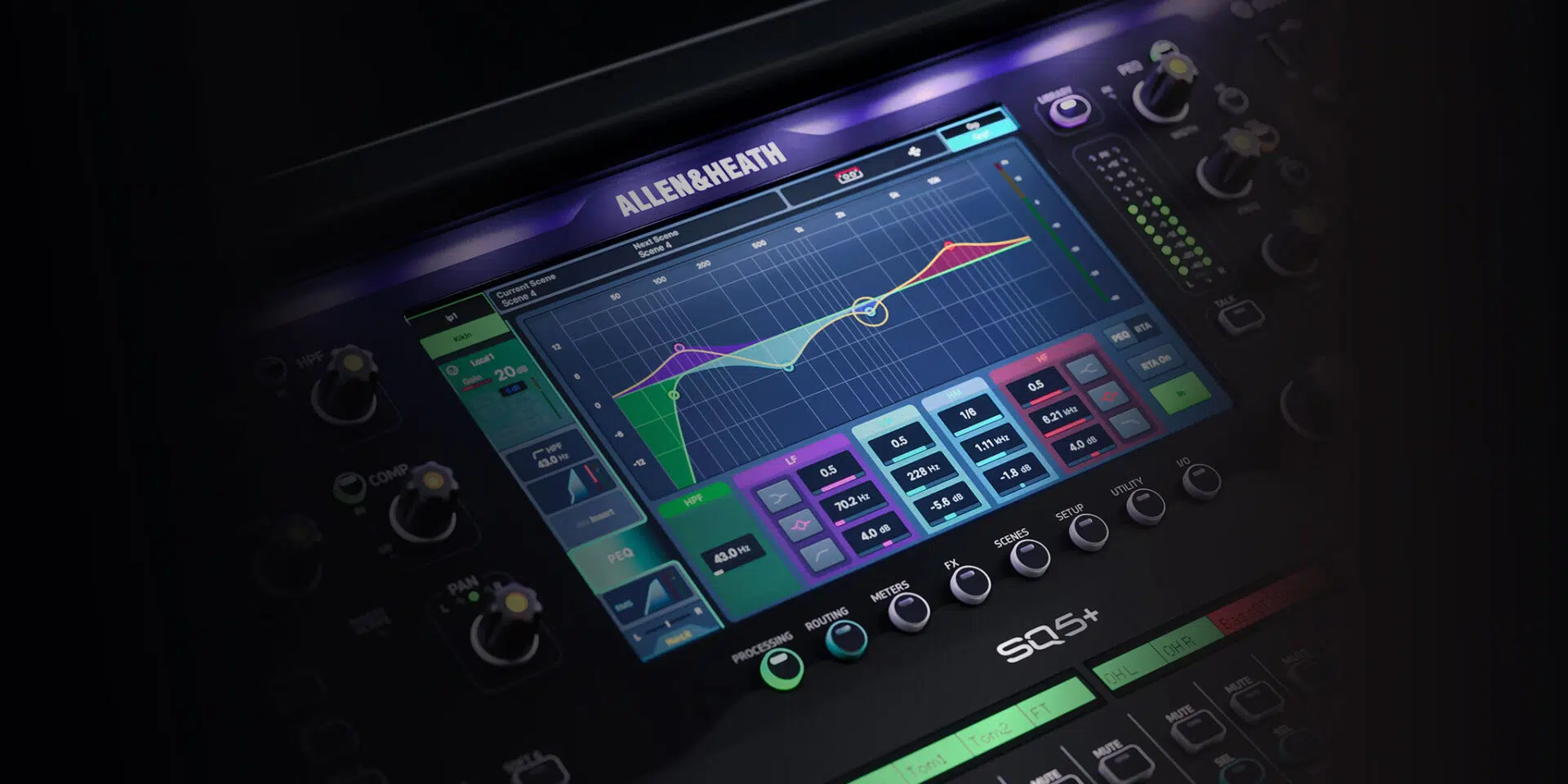

A Bigger, Bolder Interface
SQ+ is centred around a responsive 9” touchscreen with an all-new dark GUI that is fast to navigate and easy to read in any mixing environment. Framed by high-grip illuminated encoders, it delivers an intuitive blend of visual feedback and hands-on control
Drag-and-Drop Layout
Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the displays, letting you build a mixing environment that works for you.
At-a-Glance Metering
Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication down to -72dB thanks to LEDs with variable brightness and colour.
Accelerate Your Workflow
All SQ+ mixers feature assignable SoftKeys for quick access to the functions you use the most. The SQ6+ and SQ7+ also include assignable SoftRotaries for even more custom control.
The Core
All SQ+ Mixers Include:
• 96kHz FPGA Processing
• 48 Input Channels
• DEEP Processing Ready
• 8 RackExtra FX Engines + dedicated send and returns
• 4 RackUltra FX Engines + dedicated send and returns
• 12 Stereo Mixes + LR
• 3 Stereo Matrix
• Intelligent 128×128 SLink port
• Range of Remote Expanders
• 64×64 I/O Port for Audio Networking
• 32×32 USB Audio Interface
• 9” Touchscreen with dark GUI
Pick Your SQ+
SQ5+
• 16+1 Onboard Preamps
• 14 Line Outputs
• 16+1 Faders / 6 Layers
• 8 Assignable SoftKeys

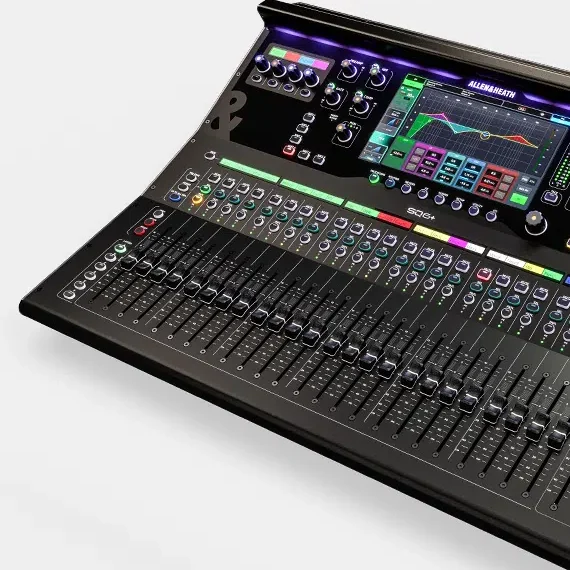

SQ6+
• 16 Line Outputs
• 24+1 Faders / 6 Layers
• 16 Assignable SoftKeys
• 4 Assignable Soft Rotaries

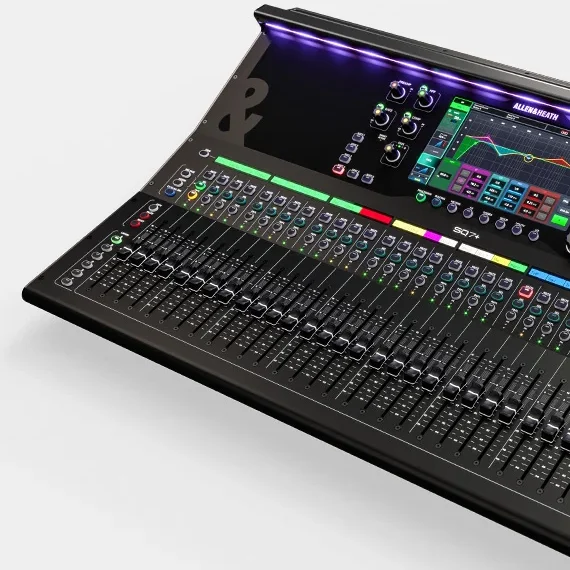

SQ7+
• 18 Line Outputs
• 32+1 Faders / 6 Layers
• 16 Assignable SoftKeys
• 8 Assignable Soft Rotaries
World Class Processing & FX
Processing
All the Tools for the Perfect Mix
Every input channel comes equipped with HPF, a super-fast gate with sidechain and filter, a freely assignable insert point, a musical 4-band parametric equaliser with RTA, and Peak/RMS compressor for control and shaping of levels and transients. Mixes include both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required.

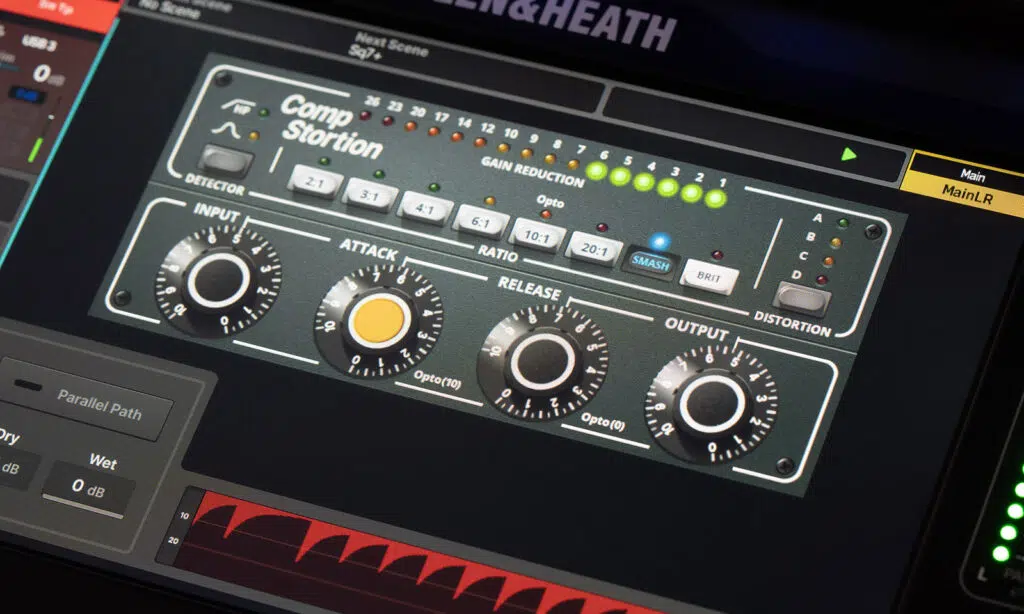

DEEP Processing
Latency Free Emulations
Every input channel comes equipped with HPF, a super-fast gate with sidechain and filter, a freely assignaSQ+ supports the latest generation of DEEP processing add-ons – models of classic analogue hardware embedded directly into your channel and mix strips, adding no latency, and available on every channel simultaneously.
Effects
Two FX Suites. Twelve FX Engines
SQ+ is equipped with 8 RackExtra FX engines, each with its own dedicated stereo return, giving you access to the acclaimed RackExtra FX suite, featuring emulations of legendary reverbs, gated reverbs, delays, modulators and more.
Four built-in RackUltra FX engines take SQ+ further, each with dedicated stereo sends and returns. First developed for the flagship dLive system, and proven on international tours, the RackUltra FX suite of add-ons brings premium reverbs, vocal tuning and pitch processors, distortion, saturation, and more to SQ+. The 4 engines can also run RackExtra FX for maximum flexibility.
Recording & Playback
Interface
Record. Stream. Mix
SQ+’s built-in USB audio interface enables easy multitrack recording, backing-track playback, livestreaming, and virtual soundcheck at up to 32×32 channels at both 96kHz and 48kHz. Class compliant and compatible with Mac and Windows with ASIO and WDM drivers available. You can also map faders, rotaries, channel keys and SoftKeys to control your favourite DAW using the Allen & Heath MIDI Control app.

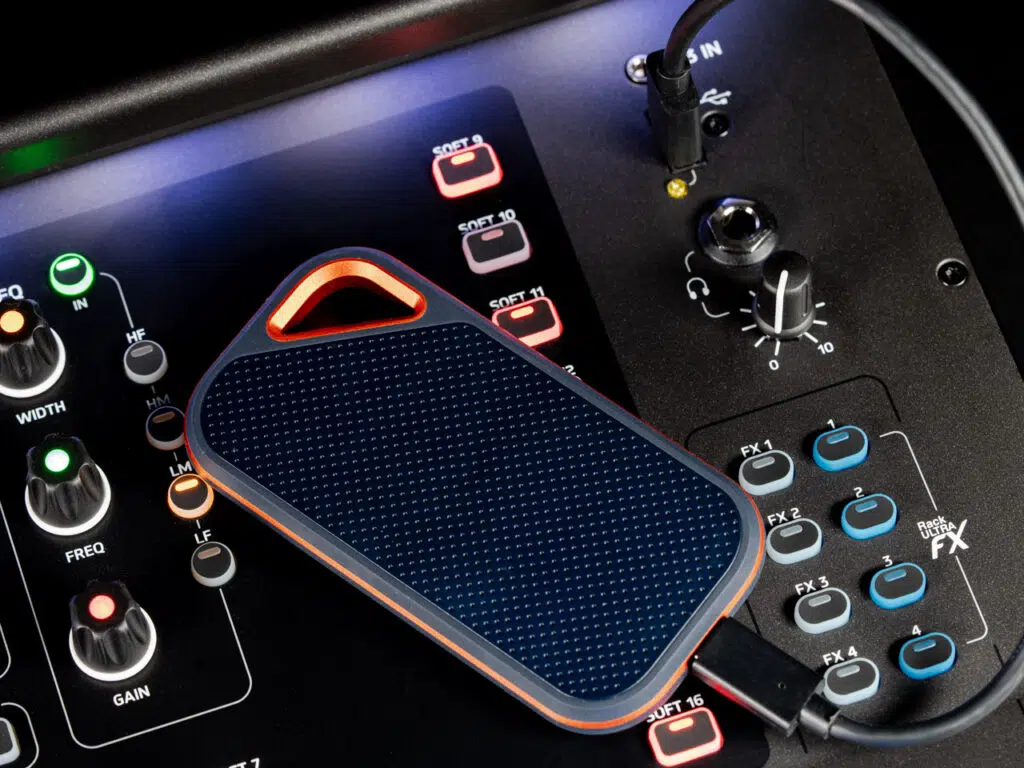

SQ-Drive
Capture. Playback. Virtual Soundcheck
The integrated SQ-Drive makes it quick and easy to capture or playback 16 channels (96kHz), 32 channels (48kHz), or a simple stereo mix, direct to a USB drive. No need for a laptop or DAW – just press record.
Apps
Expand your workflow beyond the mixer. Our free apps put mixing and personal monitor control in the palm of your hand.

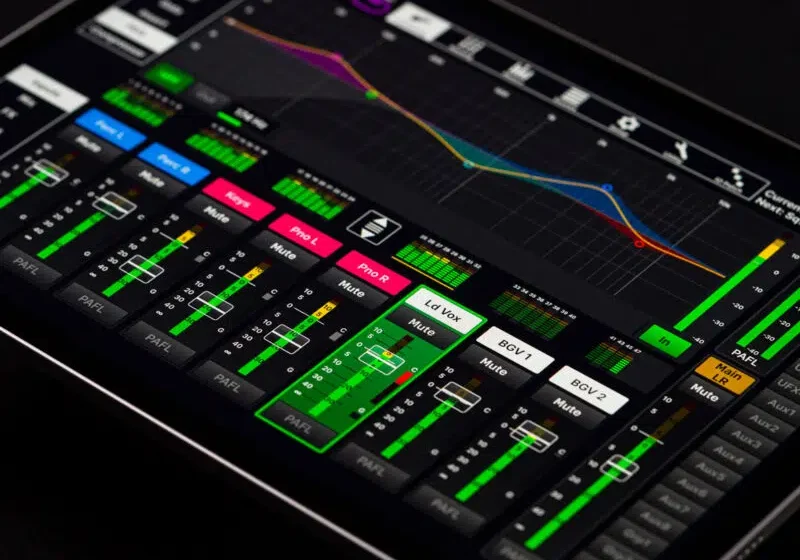

SQ+ MixPad
From intimate bars to cruise ships and large venues, SQ-Rack excels in fixed installations or as part of bigger systems. With its compact design and powerful capabilities, it’s the natural fit for premium sound.
SQ+ 4You

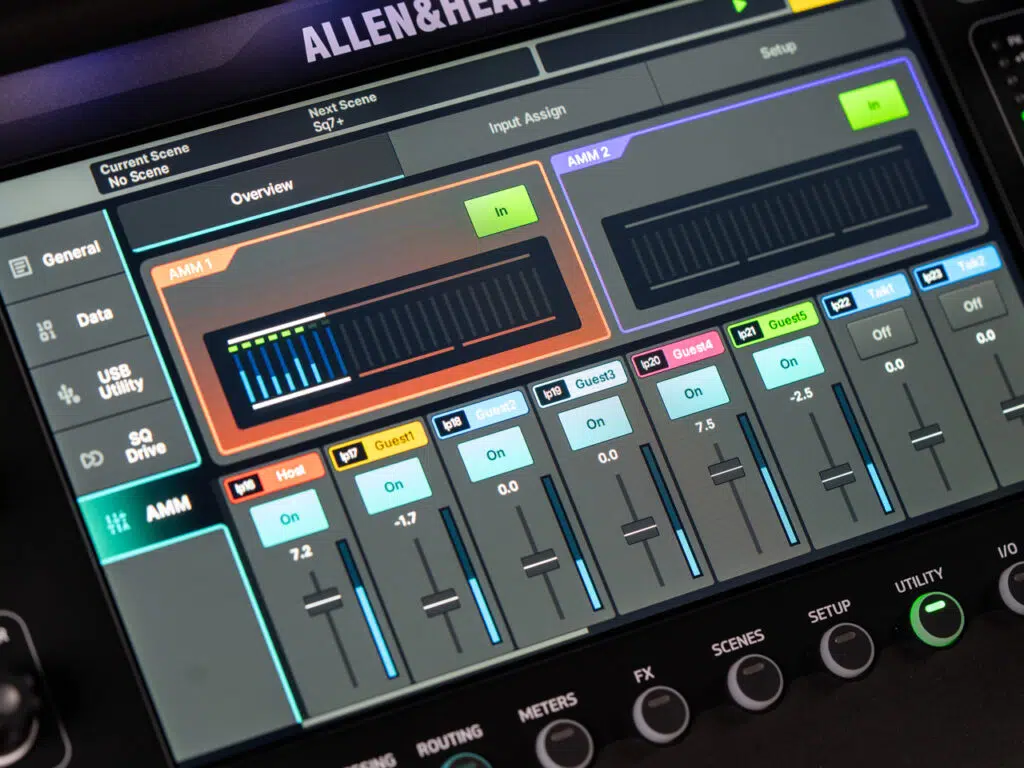

AMM
Automatic Mic Mixing
SQ+’s advanced Automatic Mic Mixers make it a natural choice for mixing conferences, panel discussions, and broadcast applications. Two independent 24 channel AMM’s can run simultaneously for two separate zones or combine into a single 48 channel AMM for larger events.
Built for the Real World
The live environment is unforgiving, so SQ+ is built to take it.
A robust all-metal chassis provides the strength and rigidity to handle the rigours of touring and installation alike, while the new carbon-on-graphite finish with black and white knobs and fader caps gives it a sharp, contemporary look that holds up under real-world use. Every SQ+ comes backed by a 2-year manufacturer’s warranty as standard.
